Mini-pleats HEPA Filter

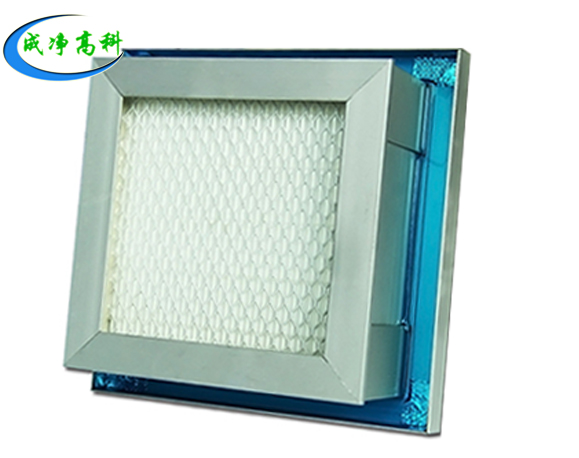

Side tank high efficiency air filter

BRAND: Chengjing hi-tech
Size：Customize
Efficiency:H13-H14(99.99%-99.999%)
Product description: Side tank high efficiency air filter
INQUIRY

HEPA filter sump

Features

●High efficiency, low resistance

●Light weight, convenient installation

●For pharmaceutical, hospital, food hygiene, microbiology and other high-grade air purification at the end sealed

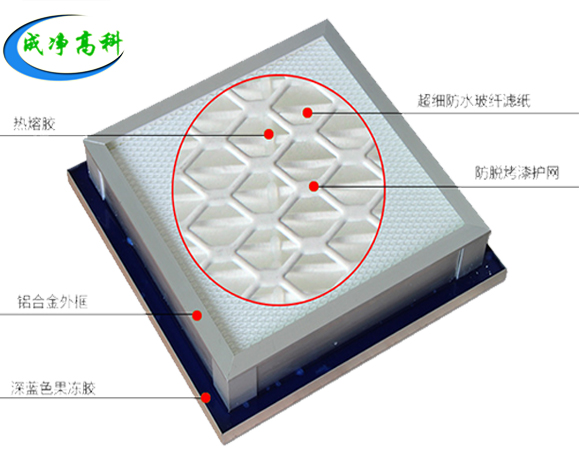

Materials and operating conditions

●External frane：Aluminum alloy frame

●Sealant：Gel-glue

●Filter media：Hot-melt

●Gasket：Blue jelly rubber seal sump

●Filter media：Glass fiber

●Use the highest temperature, humidity：80℃、80%

Low profile options: outside side tank 18 mm buckle groove width 69 mm, inner buckle groove width 75 mm, 13 mm, inner buckle groove width of 90 mm within 20 mm, 93 mm buckle slot 13 mm wide, Commonly used liquid trough profiles are: within 20 mm buckle groove width 90 mm, 93 mm buckle groove width of 13 mm, 80 mm tank top 20 mm groove width

Standard specification

model	Outside dimensions (mm)	Rated air flow (m³/h)	Imitial resistance (Pa)	Efficiency (%)	Dust capacity (g)
CJ-H1-B1	305×305×70	200	≤220或≤140（HV）	≥99.99	120
CJ-H1-B2	610×305×70	400	≤220或≤140（HV）	≥99.99	240
CJ-H1-B3	610×610×70	900	≤220或≤140（HV）	≥99.99	510
CJ-H1-B4	915×610×70	1400	≤220或≤140（HV）	≥99.99	810
CJ-H1-B5	305×305×80	250	≤220或≤140（HV）	≥99.99	150
CJ-H1-B6	610×305×80	500	≤220或≤140（HV）	≥99.99	300
CJ-H1-B7	915×305×80	750	≤220或≤140（HV）	≥99.99	450
CJ-H1-B8	610×610×80	1000	≤220或≤140（HV）	≥99.99	600
CJ-H1-B9	915×610×80	1500	≤220或≤140（HV）	≥99.99	900
CJ-H1-B10	305×305×90	300	≤220或≤140（HV）	≥99.99	180
CJ-H1-B11	610×305×90	600	≤220或≤140（HV）	≥99.99	360
CJ-H1-B12	915×305×90	900	≤220或≤140（HV）	≥99.99	540
CJ-H1-B13	610×610×90	1200	≤220或≤140（HV）	≥99.99	720
CJ-H1-B14	915×610×90	1800	≤220或≤140（HV）	≥99.99	1080
